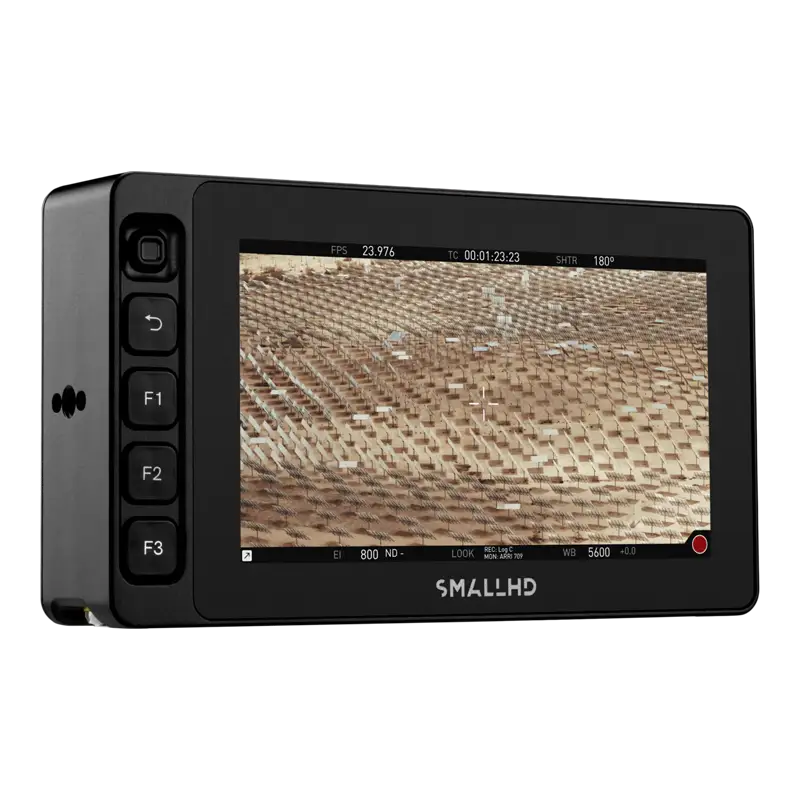

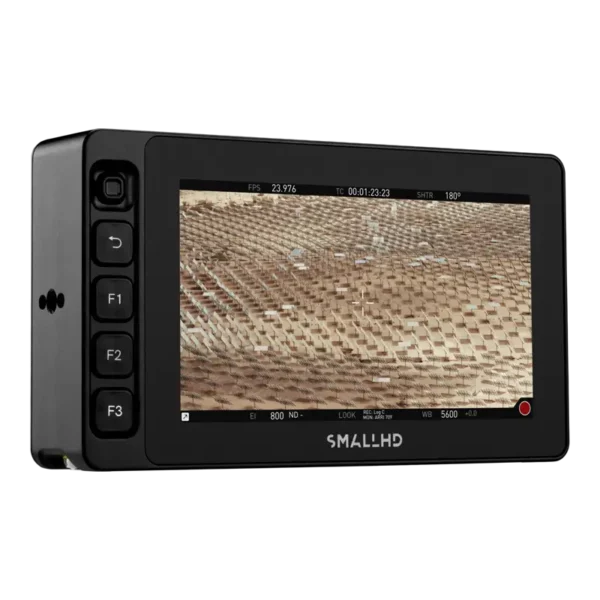

SmallHD ULTRA 5 Bright Touchscreen Monitor

the SmallHD ULTRA 5 Bright Touchscreen Monitor, which features a 3000 bright cd/m² display for viewing in just about any indoor or outdoor environment. The 5″ 1920 x 1080 touchscreen LCD provides a sharp image and 10-bit 4:2:2 Rec. 709 color processing, ideal for focus pulling and image analysis on set and in the field.

Key Features
  • 5″ 1920 x 1080 Touchscreen Display
  • 3G-SDI and HDMI Inputs & Outputs
  • Bright 3000 cd/m² LCD Panel
  • 10-Bit 4:2:2 DCI-P3 Color Gamut
Categories: ,

The ULTRA 5 features HDMI and 3G-SDI inputs and outputs, and it also features physical buttons for use in conditions that might require gloves. It can also be used to control your camera, and it features a 5-pin USB port for optional RED camera control, and it also has an Ethernet port for optional ARRI and Sony VENICE camera control. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.

Features
  • Daylight-viewable, 5″ touchscreen on-camera monitor with 3000 cd/m² brightness
  • Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel
  • HDMI and 3G-SDI inputs and outputs
  • Buttons around the monitor allow you to use the monitor in any conditions
  • The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more
  • Four 1/4″-20 mounting threads on the left, right, bottom, and back of the monitor
  • Power using a 2-pin power input
  • Optional RED camera control via the micro-USB port
  • Optional ARRI/Sony VENICE camera control via the Ethernet port
  • Durable aluminum chassis
  • Display Tools
  • Pixel zoom: 2x and 4x with pinch-zoomAspect ratios: Preset and customizable
    DSLR scale: Canon 5D Mk II and Canon 7D
    Custom scale: Underscan only
    Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
    Image flip: Auto and manual
    Image rotation: Auto and manual
    Cross conversion: HDMI to SDI, SDI to HDMI
    Color focus assist: Adjustable style and intensity
    Peaking: Adjustable intensity
    False color: Spectrum, ARRI-style, and customizable
    Zebra: Dual, customizable
    Waveform: Luma and RGB, customizable with region-of-interest highlighting
    Vectorscope
    RGB parade, customizable
    Histogram: Luma and RGB
    Image capture, with dedicated button and image gallery
    Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
    LUT import: Via SD card or USB storage device
    Image overlay: Opacity slider and blink setting
    Image capture
    Audio meters: Up to eight channels
