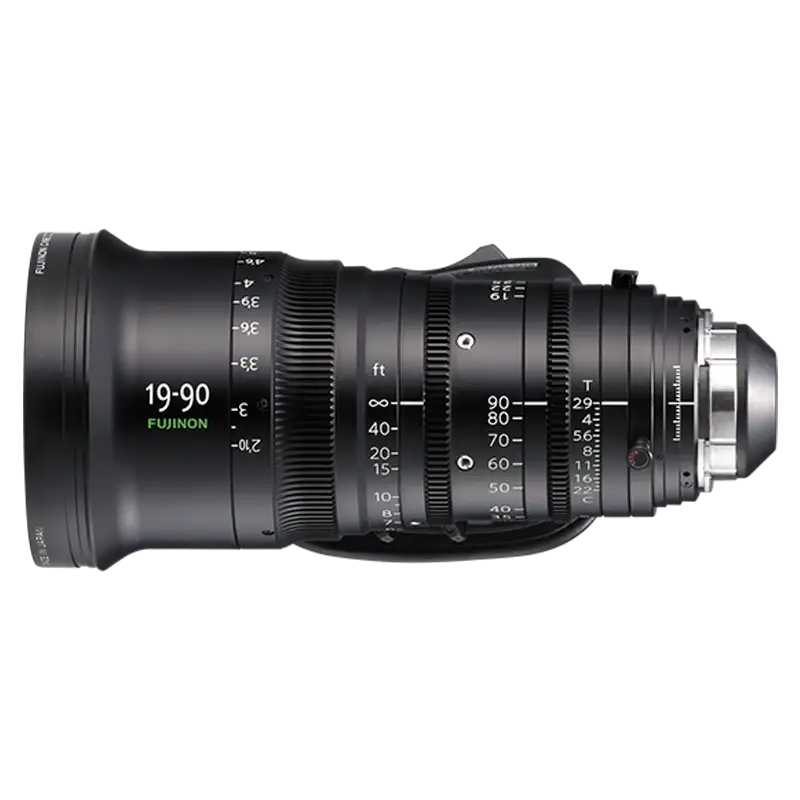

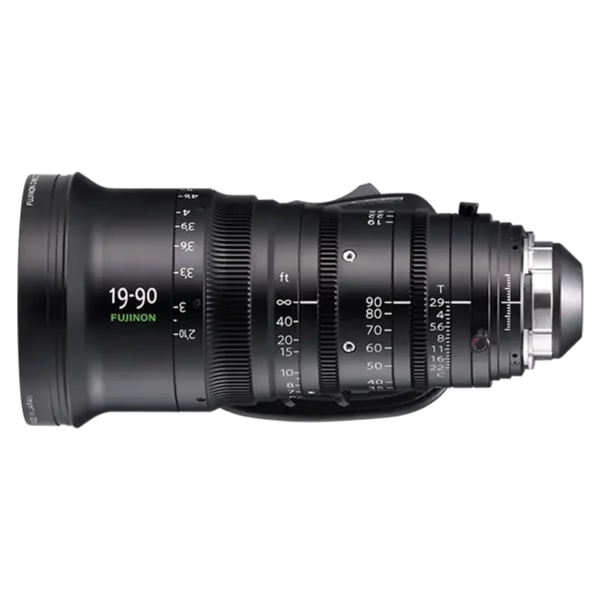

Fujinon ZK19-90mm T2.9

Fujinon ZK 19-90mm T2.9 is a standard zoom lens with a frequently used focal length covering from 19 to 90mm. Thanks to the detachable servo drive unit on the ZK series, the lens can be operated in the same manner as a traditional broadcast ENG-Style lens and accessories. Furthermore, with the servo drive unit removed, traditional cinema manual, or external cine motors for zooming and focusing operation is also available for all models of this series.

Contact for pricing

Categories: Fujinon, Lenses, Zoom Lens

With the latest optical simulation technology and high precision large diameter aspherical elements, it has achieved both high optical performance and a lightweight compact body of 2.85kg. Thanks to high resolution from the center to corner, high image quality without image distortion will be exhibited on the large screens of movie theaters.

Feature

Outstanding 4K optical performance and compact design
ENG-Style with Detachable Servo Drive Unit
Super 35mm large format coverage
Compatible with current broadcast and cine lens accessories
Natural Bokeh(Blur) thanks to 9 Blades Round Iris
16bit encoder for virtual device

Specifications

Focal Length:: 19-90mm
Zoom Raito:: 4.7x
T-No.:: T2.9
Lens Mount:: PL Mount
M.O.D from Sensor Plane:: 0.85m / 2ft 9in (with macro function 0.37m / 1ft 3in)
Angular Field of View 27.45mm x 15.44mm ^*1:: 19mm ： 71°41’×44°14′
90mm ： 17°20’×9°48′
Focus Rotation:: 200°
Zoom Rotation:: 120°
Iris Rotation:: 59°
Iris Blades:: 9
Macro Function: Yes
Front Diameter:: 114mm
Filter Diameter:: 111mm
Length (approx.):: φ114 x 226mm / 8.9″
Weight (approx.):: 2.8kg / 6.2lbs.（with Drive Unit）
2.3kg / 5.1lbs.（without Drive Unit）
