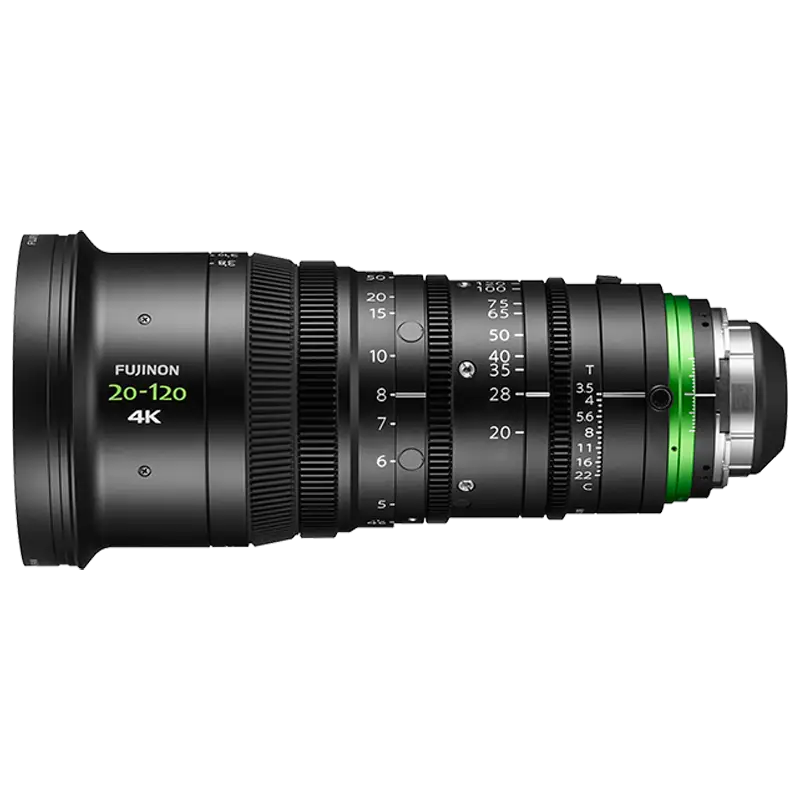

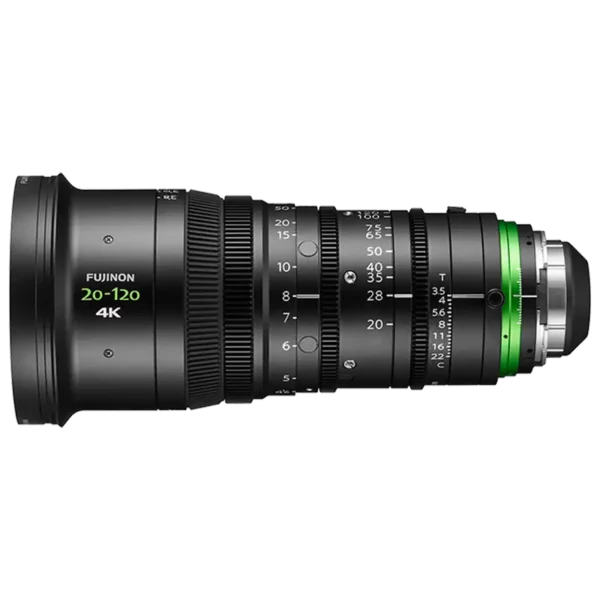

Fujinon 20-120mm XK6x20 is a zoom lens for cinema camera that offers high optical performance compatible with 4K cameras and covers a wide range of focal length from 20mm to 120mm. It also realizes T3.5 brightness in the entire zoom range. There is no T drop and it offers comfortable operation. Various scenes can be shot with this single lens.
Fujinon 20-120mm T3.5 “XK6x20” is equipped with detachable drive unit for electric zooming and focusing which is popular function with existing products. It also features 0.8mm gear pitch for compatibility with standard accessories.
Feature
Specifications
Focal Length:
20mm – 120mm
Zoom Raito:
6x
T-No.:
T3.5
Lens Mount:
PL Mount
M.O.D from Sensor Plane:
1.1m / 3ft 7in (with macro function 0.4m / 1ft 4in)
Angular Field of View
40.96mm x 21.60mm (*1)
20mm ： 63°41’×38°30′
120mm ：11°49’×6°40′
Focus Rotation:
200°
Zoom Rotation :
90°
Iris Rotation:
53.9°
Iris Blades:
9
Macro Function:
Yes
Front Diameter:
114mm
Filter Diameter:
–
Length (approx.):
φ114mm x 239mm / 9.4″
Weight (approx.):
2.9kg / 6.4lbs.（with Drive Unit）
2.4kg / 5.3lbs.（without Drive Unit）
