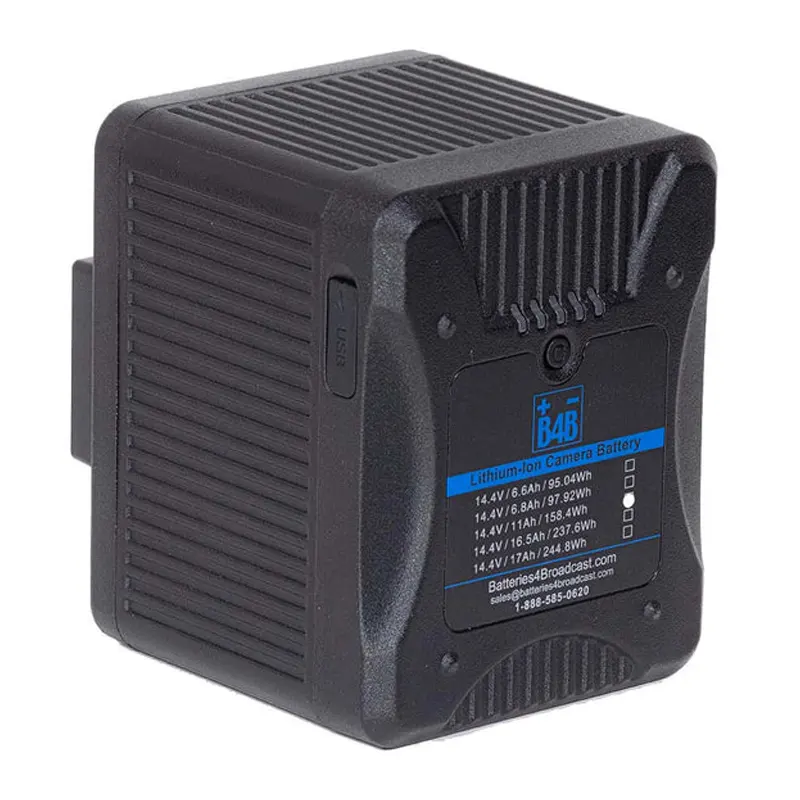

The B4B MAX 160 Gold Mount Li-Ion Battery (158Wh, 10.2Ah 14.8v) Li-ion Gold Mount Battery with USB and D-Tap connectivity is aimed at the Digital Cinematography market where high current loads are more common every day. An Excellent choice for High Output LED lighting.
With an output of up to 150W or 12A this battery can handle the job.
The MAX 160 is equipped with (1) D-Tap connector and (1) USB power out connector for powering peripheral equipment. The MAX 160’s high capacity of 158Wh gives extended running times while being under the 160Wh IATA limit for carry-on air-craft baggage.
Capacity : 158.4 Wh
Dimensions excluding mount (H x W x D) : 115 x 92 x 98 mm (4.53 x 3.62 x 3.84 in)
Weight approximately : 1200 g (2.65 lbs)
Connectivity
1 Gold Mount (output and charging)
1 D-Tap (output and charging)
1 USB A (output only)
Gold Mount and D-Tap specifications
Voltage : 14.4 V
Full voltage : 16.8+/-0.1 V
Cutoff voltage : 11 V
Capacity : 158.4 Wh
Power limit : 150 W
Maximum current : 12 A
USB output specifications
Voltage (regulated) : 5 V
Maximum current : 1 A
