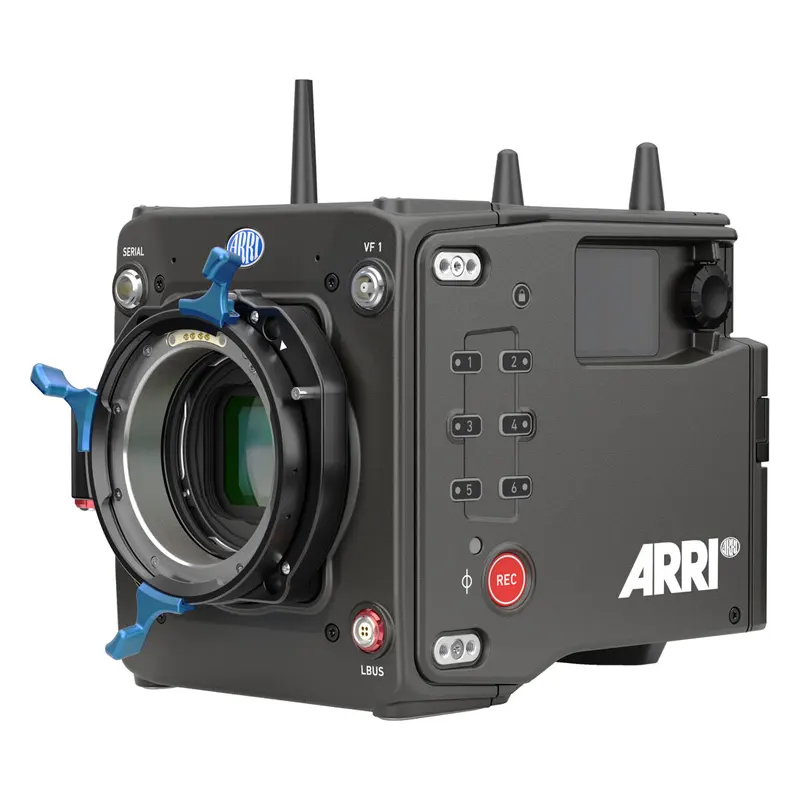

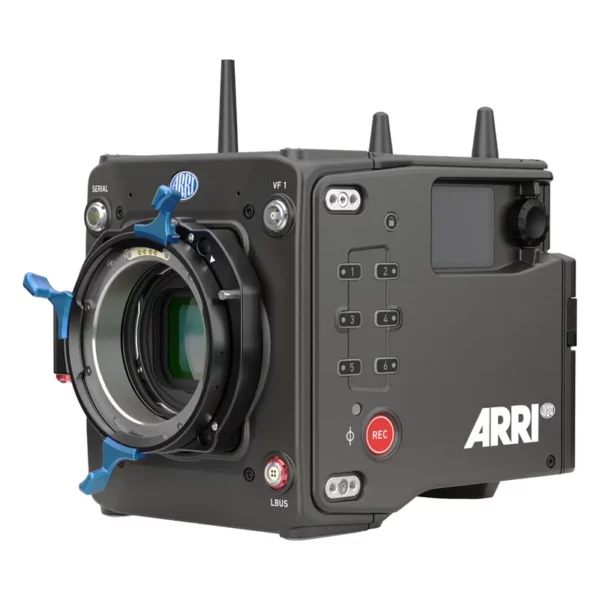

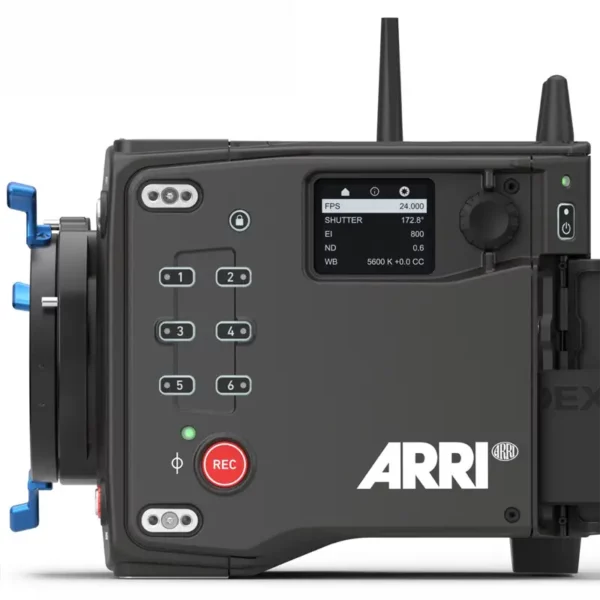

ARRI Alexa 35

ALEXA 35 specifications

Here are the full specifications of the ALEXA 35

• Sensor Type: Super 35 format ARRI ALEV 4 CMOS sensor with Bayer pattern color filter array
• Sensor Maximum Number of Photosites and Size: 4608 x 3164 | 27.99 x 19.22 mm / 1.102x 0.757” | Ø 33.96 mm / 1.337”
• Sensor Frame Rates: 0.75 – 120 fps
• Weight∼2.9 kg / 6.4 lbs (camera body with three antennas and LPL Mount (LBUS))
• Photosite Pitch: 6.075 μm
• Sensor Active Image Area (photosites): 4.6K 3:2 Open Gate: 4608 x 3164 | 4.6K 16:9: 4608 x 2592 | 4K 16:9: 4096 x 2304 | 4K 2:1: 4096 x 2048 | 3.3K 6:5: 3328 x 2790 | 3K 1:1: 3072 x 3072 | 2.7K 8:9: 2743 x 3086 | 2K 16:9 S16: 2048 x 1152
• Sensor Active Image Area (dimensions): 4.6K 3:2 Open Gate: 28.0 x 19.2 mm / 1.102 x 0.756” | 4.6K 16:9: 28.0 x 15.7 mm / 1.102 x 0.618” | 4K 16:9: 24.9 x 14.0 mm / 0.980 x 0.551” | 4K 2:1: 24.9 x 12.4 mm / 0.980 x 0.490” | 3.3K 6:5: 20.22 x 16.95 mm / 0.796 x 0.693” | 3K 1:1: 18.7 x 18.7 mm / 0.737 x 0.737” | 2.7K 8:9: 16.7 x 18.7 mm / 0.656 x 0.738” | 2K 16:9 S16: 12.4 x 7.0 mm / 0.490 x 0.276”
• Recording File Container Size (pixel): 4.6K 3:2 Open Gate: 4.6K (4608 x 3164) | 4.6K 16:9: 4.6K (4608 x 2592), 4K (4096 x 2304) | 4K 16:9: 4K (4096 x 2304), UHD (3840 x 2160), 2K (2048 x 1152), HD (1920 x 1080) | 4K 2:1: 4K (4096 x 2048) | 3.3K 6:5: 3.3K (3328 x 2790), 4K (4096 x 1716) | 3K 1:1: 3K (3072 x 3072), 3.8K (3840 x 1920) | 2.7K 8:9: UHD (3840 x 2160) | 2K 16:9 S16: 2K (2048 x 1152)
• Recording File Image Content (pixel): Identical to Recording File Container Size
• Dynamic Range: 17 stops
• Exposure Index: Adjustable from EI 160 – 6400 in 1/3 stops
• Shutter: Electronic shutter, 5.0°- 356° or 1s – 1/8000s
• Recording Formats: MXF/ARRIRAW | MXF/Apple ProRes 4444 XQ | MXF/Apple ProRes 4444 | MXF/Apple ProRes 422 HQ
• Recording Media: Codex Compact Drive 1TB (CA08-1024) | Codex Compact Drive 2TB (CB16-2048)
• Recording Frame Rates: ARRIRAW 4.6K 3:2 Open Gate: 35 / 75 fps | ARRIRAW 4.6K 16:9 – 4.6K: 45 / 75 fps | ARRIRAW 4K 16:9 – 4K: 55 / 120 fps | ARRIRAW 4K 2:1 – 4K: 65 / 120 fps | ARRIRAW 3.3K 6:5 – 3.3K: 55 / 100 fps | ARRIRAW 3K 1:1 – 3K: 55 / 100 fps | Apple ProRes 4.6K 3:2 Open Gate: 60 / 60 fps | Apple ProRes 4.6K 16:9 – 4K: 75 / 75 fps | Apple ProRes 4K 16:9 – 4K: 100 / 100 fps | Apple ProRes 4K 16:9 – UHD: 120 / 120 fps | Apple ProRes 4K 16:9 – 2K: 120 / 120 fps | Apple ProRes 4K 16:9 – HD: 120 / 120 fps | Apple ProRes 4K 2:1 – 4K: 120 / 120 fps | Apple ProRes 3.3K 6:5 – 3.3K: 75 / 75 fps | Apple ProRes 3.3K 6:5 – 4K 2.39:1 Ana. 2x: 90 / 90 fps | Apple ProRes 3K 1:1 – 3K: 90 / 90 fps | Apple ProRes 3K 1:1 – 3.8K 2:1 Ana. 2x: 100 / 100 fps | Apple ProRes 2.7K 8:9 – UHD 16:9 Ana. 2x: 100 / 100fps | Apple ProRes 2K 16:9 S16 – 2K: 120 / 120 fps | (Compact Drive 1TB / 2TB)
• Recording Modes: Standard real-time recording | Pre-recording
• Viewfinder Type: Multi Viewfinder MVF-2 with 4″ flip-out monitor
• Viewfinder Technology: OLED viewfinder display | LCD fold out monitor
• Viewfinder Resolution (pixel): 1920 x 1080
• Viewfinder Diopter: Adjustable from -5 to +5 diopters
• Color Output: Rec 709 | Rec 2020 | Rec 2100 PQ | Rec 2100 HLG | LogC4 | Custom Look (ARRI Look File ALF-4)
• Look Control: Import of custom 3D LUT | ASC CDL parameters (slope, offset, power, saturation) | ARRI Look Library | ARRI Textures
• White Balance: Manual and auto white balance, adjustable from 2000K to 11000K in 10K steps | Color correction adjustable range from -16 to +16 CC | 1 CC corresponds to 035 Kodak CC values or 1/8 Rosco values
• Filters: Four position built-in motorized ND filter: Clear, 0.6, 1.2, 1.8 | Fixed optical low pass, UV, IR filter
• Image Outputs: 2x VF custom CoaXPress connectors for MVF-2 viewfinder | 2x 12G SDI (BNC): 422 1.5G HD, 422 3G HD, 444 3G HD, 422 6G UHD, 422 12G UHD, 444 12G UHD
• Lens Squeeze Factors: 1.00, 1.25, 1.30, 1.33, 1.50, 1.65, 1.80, 1.85, 2.00
• Exposure and Focus Tools: False Color | Zoom | Aperture and Color Peaking
• Audio Input: 1x LEMO 6pin balanced stereo line in with 12V power output | (line input max. level +24 dBu correlating to 0 dBFS) | Two built-in microphones for scratch audio | With Audio Extension Module AEM-1: additional 3x TA3 connectors (MIC/Line, +48 V, AES)
• Audio Output: SDI (embedded) | 3,5mm stereo headphone jack (on MVF-2)
• Audio Recording: 4 channel linear PCM, 24 bit 48 kHz
• Remote Control Options: MVF-2 viewfinder as wired remote control with 10m/33ft cable | Camera Companion App | ARRI Electronic Control System (ECS) | Web-based remote control via Ethernet & WiFi (beta version) | Camera Access Protocol (CAP) via Ethernet & WiFi | GPIO interface for integration with custom control interfaces
• Interfaces: 1x LBUS (LEMO 4-pin) for lens motors, daisy-chainable | 1x SERIAL (LEMO 4-pin) for distance measuring accessories | 1x TC (LEMO 5-pin) for timecode In/Out | 1x ETH (LEMO 10-pin) for remote control and service | 1x SYNC IN (BNC) for Genlock synchronization | 1x RET IN (BNC, switchable on SDI 2) | 1x USB-C for user setups, look files, etc. | 1x Rear Interface (18-pin Pogo) for connection of modules and battery adapters | 1x Top Interface (5-pin Pogo)
• Wireless Interfaces: Built-in WiFi module (IEEE 802.11b/g) | Built-in White Radio for ARRI ECS lens and camera remote control
• Lens Mounts: ARRI LPL Mount (LBUS) | ARRI PL-to-LPL Adapter | ARRI PL Mount (LBUS) | ARRI PL Mount (Hirose) | ARRI EF Mount (LBUS) | Leitz M Mount for ARRI
• Flange Focal Depth: LPL mount: 44 mm | PL mount: 52 mm
• Power Input: 1x PWR (LEMO 8-pin) 1x BAT (camera rear interface / battery adapter) 20.5 – 33.6 V DC
• Power Consumption: ~ 90 W (Camera body and MVF-2)
• Power Outputs: 1x RS (Fischer 3-pin) for 24 V accessory power out, start/stop, and shutter pulse | 1x 12 V (LEMO 2-pin) for 12 V accessory power out | 1x LBUS (LEMO 4-pin) for lens motors & 24 V power out, daisy-chainable | 1x AUDIO (LEMO 6-pin) for balanced stereo line in and 12 V accessory power out | 1x ETH (LEMO 10-pin) for remote control, service, and 24 V accessory power out | With Power Distribution Module PDM-1: additionally 4x 24 V, 2x 12 V and 1x D-Tap
• Measurements (HxWxL): 147 x 152.5 x 203 mm / 5.8 x 6.0 x 8.0” (camera body with LPL lens mount)
• Operating Temperature: -20° C to +45° C / -4° F to +113° F  95% relative humidity max, non-condensing, splash and dustproof through sealed electronics, IP 51
• Software Licenses: ALEXA 35 Cine License
