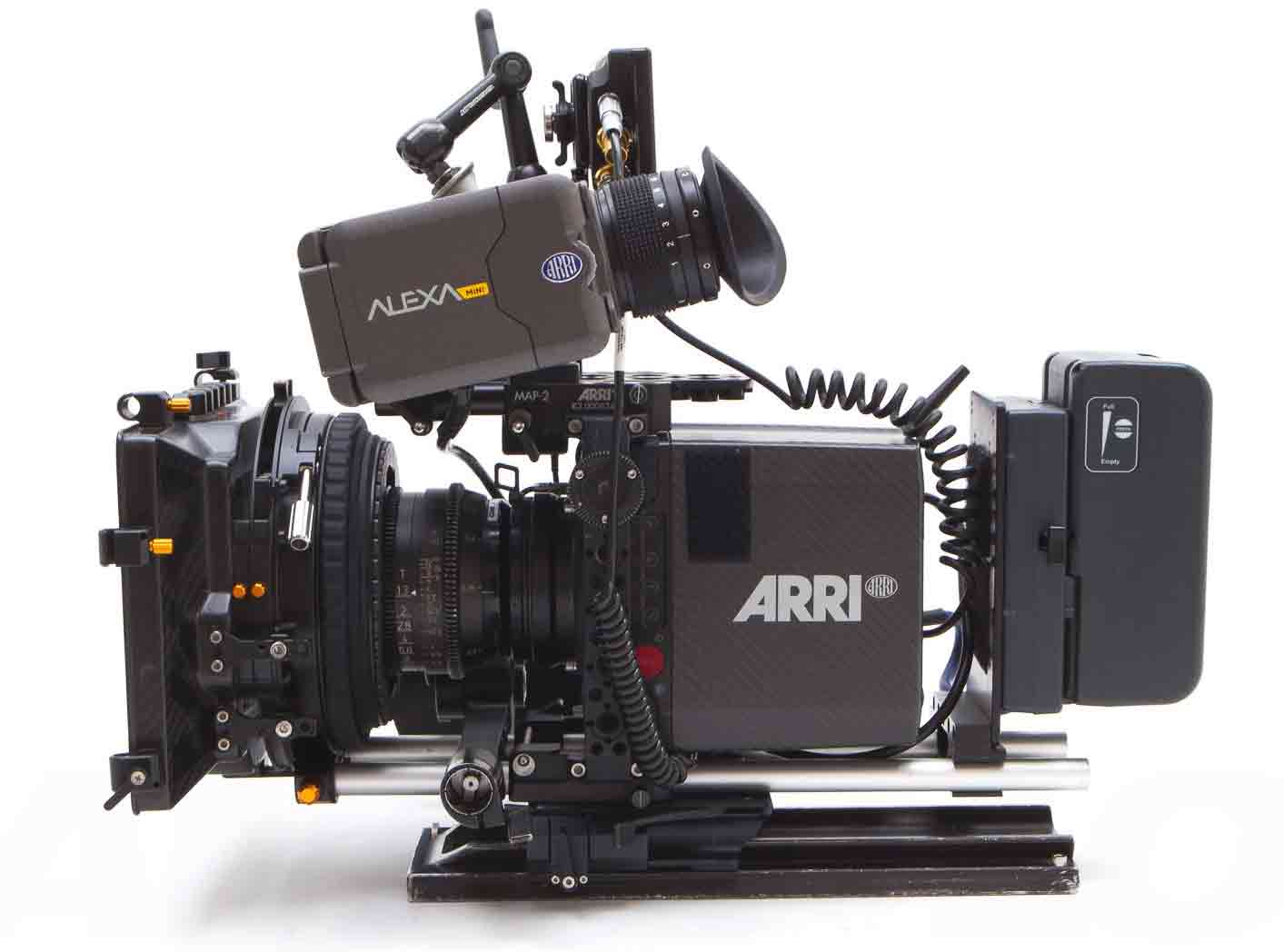

The ALEXA Mini LF is a hybrid of the ALEXA Mini and the ALEXA LF, as it retains the same LF sensor but the form factor of the Mini.
The new exterior has a left-side media bay with two rows of connectors on the back and a slot to insert 1TB Codex media. It also features six user buttons, three more than the Mini, to configure to your preference. It also features extra 12 and 24V power outputs and a black burst/tri-level input. The audio connector is now 6-pin, so it doesn’t conflict with the 5-pin timecode port.
The Mini LF offers an array of recording format choices in MXF ARRIRAW and MXF ProRes, recording to 1TB Codex capture drives. With a base sensitivity of EI 800, 16-bit processing, and a dynamic range of 14-plus stops, your footage is effectively future-proofed for compatibility with HDR displays. Frame rates up to 90 fps produce smooth slow motion and enable capture for higher-clarity HFR (High Frame Rate) projects.
An internal Large-Format Full-Spectrum Neutral Density (LF FSND) filter system features 0.6, 1.2, and 1.8 filters. Additional ALEXA Mini LF features include compatibility with existing ARRI Look files and workflow, clip playback in both MXF ARRIRAW or MXF ProRes, and 2-channel, 6-pin XLR audio input.
This Lens Mount Set includes the ALEXA Mini LF, the PL-to-LPL adapter, and the ARRI LPL lens mount so you can shoot with a variety of lenses on the ALEXA Mini LF.
